Aurum Cantus AC-130F1

Technical data

  • Nominal power: 60W
  • Sensitivity SPL: 89dB

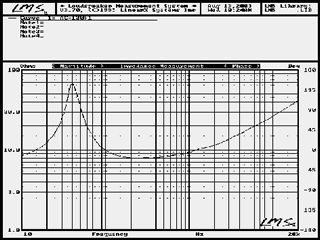

  • Rated impedance: 8¦¸

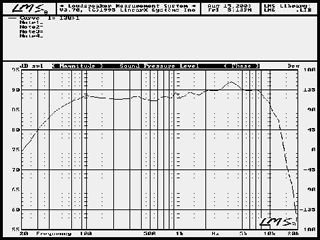

  • Frequency range: 38 - 7000Hz
  • Resonance frequency: 38Hz
  • DC resistance: 7.0¦¸
  • Mechanical quality factor £¨Qms£©: 3.24
  • Electrical quality factor £¨Qes£©: 0.32
  • Total quality factor £¨Qts£©:0.29
  • Equivalent volume of air £¨Vas£©: 30L
  • Moving mass £¨Mms£©: 8.5g
  • Effective piston area: 95cm2
  • Suspension compliance £¨Cms£©: 2.39mm/N
  • BL product £¨BL£©: 6.15N/A
  • Flux density: 1.1T
  • Voice coil diameter: ¦Õ25mm
  • Voice coil height: 13mm
  • Voice coil inductance £¨Lbm£©: 0.35mH
  • Linear excursion £¨Xmax£©: ¡À5mm
  • Magnet diameter: ¦Õ100mm
  • Magnet height: 20mm
  • Former material: Aluminum
  • Weight of driver: 1360g
  • Outer dimensions: 140¡Á140/¦Õ157mm
  • Cutout dimensions: 127mm
  • Frontplate thickness: 6mm
  • Overall depth: 73mm
